Product Description

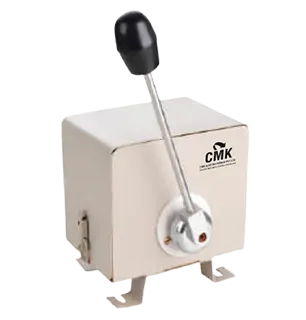

Master controllers are used for operation of contractor's equipment controlling E.O.T. Cranes & Rolling mills drives. The controllers are made in dust proof enclosure in IP-54 degree of protection, up to 6 notches either side with maximum 24 contacts as per desired sequence with spring return arrangement & deadman's handle arrangement are available Master Controllers are compact up to 4-0-4 step suitable for Grab-Hoist, CT-LT maximum contacts 16 per motion with spring return arrangement.
Technical Specification
| Body Material | MS sheet |
| Enclosure | IP-44 / IP-54 |
| Mounting Position | Horizontal/Vertical |
| Rated Voltage | 500 V |
| Cable entry | 2x 20/2x26 Conduit |
| Thermal Test Current | 40 amp |
| Frequency of operation | 1000 switching per hour |
| No. of contacts | 24 maximum |
| No of step | 6-0-6 maximum |
| Optional arrangement | Spring return/deadman's |
| Handle Contact Material | Sliver Cadmium |
